Meanwell PLC-45-24 1.9a 45w led power supply 24vdc

FOB Reference Price:Get Latest Price
  • 1 - 49
    US $22.35
  • 50 - 199
    US $21.71
  • 200 - 999
    US $18.65
  • >=1000
    US $15.25
Supply Ability:
20000 Piece/Pieces per Month enough stocks for Meanwell PLC-45-24 1.9a 45w led power supply 2
Port:
Any seaport and airport in China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MEANWELL
Model Number:
PLC-45-24
Output Power:
45.6W
Output Type:
Single
Input Voltage:
90 ~ 264VAC 127 ~ 370VDC
Output Voltage:
24VDC
Output Frequency:
0Hz
Output Current:
0~1.9A
Brand:
Meanwell led power supply
Warranty:
2 Years
Type:
power supply 24vdc
Protections:
Short Circuit/Over TEMP/Over Current/Over Voltage
Efficiency:
86.5%

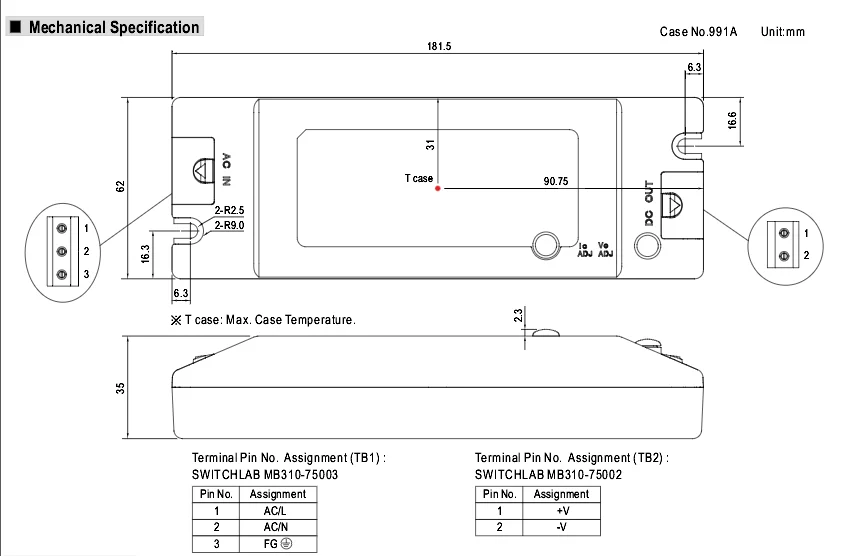

DIMENSION:
181.5*62*35mm (L*W*H)
PACKING:
0.41Kg; 30pcs/13.3Kg/0.67CUFT
WORKING TEMP:
-30℃~+50℃
INPUT FREQUENCY RANGE:
47~63HZ
Product Name:
Meanwell PLC-45-24 1.9a 45w led power supply 24vdc
Packaging & Delivery
Packaging Details
Dimension:181.5*62*35mm (L*W*H)
Packing:0.41Kg; 30pcs/13.3Kg/0.67CUFT
for Meanwell PLC-45-24 1.9a 45w led power supply 24vdc
Delivery Time
1~5 days after payment
Led Driver DESC

Meanwell PLC-45-24 1.9a 45w led power supply 24vdc

Features:

♦  Universal AC input / Full range
♦ Adjustable output voltage and current level
♦ Protections: Short circuit / Over current / Over voltage / Over temperature
♦ Built-in constant current limiting circuit
♦ Built-in active PFC function, comply with EN61000-3-2 class C
♦ Class 2 power unit
♦ Suitable for LED lighting and moving sign applications
♦ 2 years warranty

PLC is a single output LED power supply series. Differentiating from general DC output power suppliers, PLC built-in constant current limiting circuit design. Adopting a universal input range between 90VAC and 264VAC and incorporating the built-in PFC function, Class II power unit, no FG. PLC series switching power supply providing a high efficiency and a long using year, PLC suitable for indoor LED lighting and moving sign applications.

Once you’re found an Mean well LED driver, Kulon Electronics will make your Mean well placing order easy. These LED drivers suitable for LED lighting and moving sign applications. We offer a wide arrange of LED power supply to increasing demand of LED lighting applications. “Total quality assurance and customer satisfaction” are the central goals of our company.

Led Driver PARM
MODEL
PLC-45-12
PLC-45-15
PLC-45-24
PLC-45-36
PLC-45-48









OUTPUT
DC VOLTAGE
12V
15V
24V
36V
48V
CONSTANT CURRENT OPERATION VOLTAGE Note.5
9 ~ 12V
11.25~15V
18~24V
27 ~ 36V
36 ~ 48V
CURRENT RANGE
0 ~3.8A
0 ~ 3A
0~1.9A
0 ~ 1.25A
0 ~ 0.95A
RATED CURRENT
3.8A
3A
1.9A
1.25A
0.95A
RATED POWER
45.6W
45W
45.6W
45W
45.6W
RIPPLE & NOISE (max.)  Note.2
2Vp-p
2.4Vp-p
2.7Vp-p
3.6Vp-p
4.6Vp-p
VOLTAGE ADJ. RANGE
11.5~13V
14.5 ~ 16.2V
24 ~ 26V
32.5 ~ 39V
43.6 ~ 51.8V
VOLTAGE ADJ. RANGE
2.85 ~ 3.914A
2.25 ~ 3.1A
1.425~1.957A
0.938~1.288A
0.713~0.979A
VOLTAGE TOLERANCE   Note.3
10%
LINE REGULATION
3.0%
LOAD REGULATION
5.0%
SETUP, RISE TIME
500ms / 230VAC 1200ms / 115VAC at full load





INPUT
VOLTAGE RANGE
90 ~ 264VAC           127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz

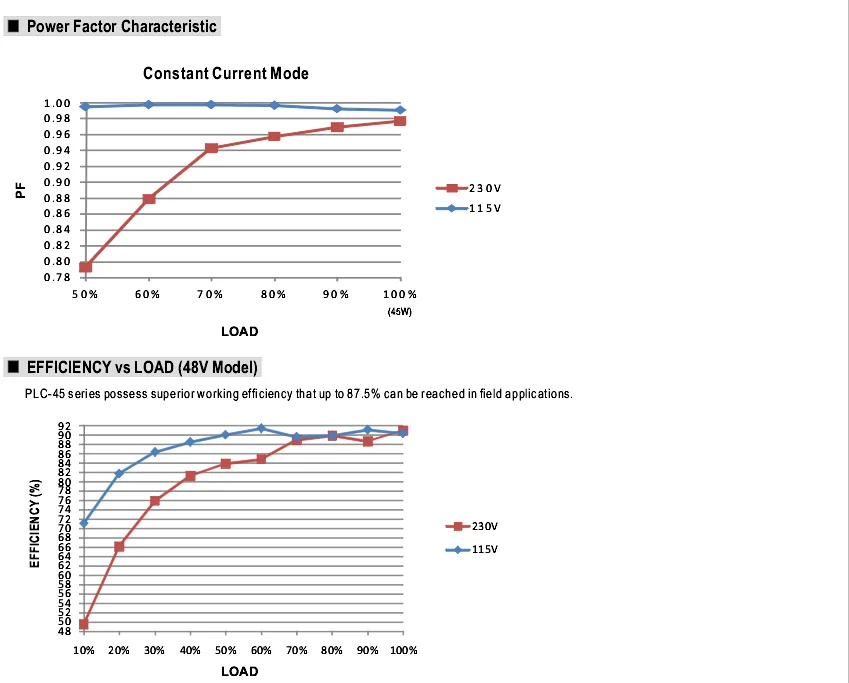

POWER FACTOR
PF>0.92/115VAC, PF>0.9/230VAC at full load
EFFICIENCY (Typ.)
83.5%
85%
86.5%
87.5%
87.5%
AC CURRENT (Typ.)
0.55A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A(twidth=50 s measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC
PROTECTION
OVER CURRENT
95 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
13.8 ~ 16V
17.5 ~ 21V
28 ~ 32V
41 ~ 46V
54 ~ 60V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down



 ENVIRONMENT
WORKING TEMP.

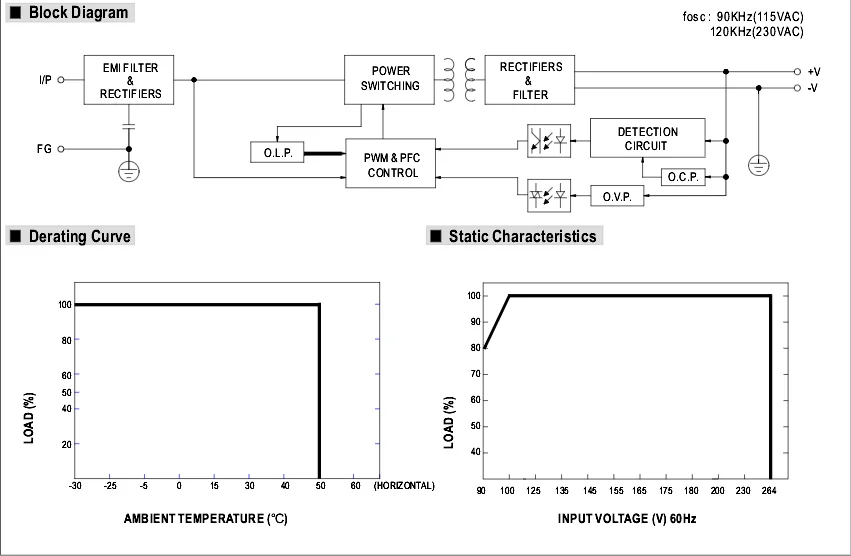

-30 ~ +50°C (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80°C , 10 ~ 95% RH
TEMP. COEFFICIENT
± 0.03%/℃ (0 ~ 50 ℃ )
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes





SAFETY & EMC
SAFETY STANDARDS
UL1310, TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSION
Compliance to EN55015, GB17743, GB17625.1, EN61000-3-2 Class C ( 75% load) ; EN61000-3-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61547, light industry level, criteria A

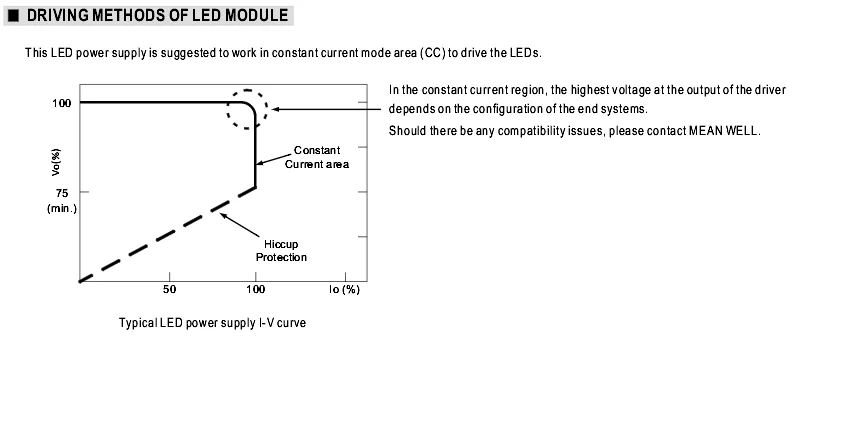

Led Driver APPL
LED Driver FAQ

How to choose a suitable Mean Well LED driver?

A.To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need.
For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system

B. Choosing functions based on your application:
1. Protection function: Over Voltage Protection (OVP), Over Temperature Protection (OVP), Over Load Protection (OLP), and etc.
2. Application function: Signaling Function (Power Good, Power Fail), Remote Control, Remote Sensing, and etc.
3. Special function: Power Factor Correction (PFC), Uninterruptible Power Supply (UPS) function.


C. Make sure that the model qualifies for the safety standards and EMC regulations you need.
1.Apparent Power=Input Voltage x Input Current (VA)
2.Real Power= Input Voltage x Input Current x Power Factor (W)

From the environment friendly point, the electric power plant needs to generate a power which is higher than apparent power in order to steadily provide electricity to the market. The real usage of electricity should be defined by real power. Assuming the power factor is 0.5, the power plant needs to produce more than 2VA to satisfy 1W real power. On the contrary, if the power factor is 0.95, the power plant only needs to generate more than 1.06VA to provide 1W real power need. It will be more effective.
