Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: MEANWELL
  • Model Number: PLC-100
  • Output Power: 100W
  • Output Type: Single
  • Input Voltage: 90 ~ 264VAC 127 ~ 370VDC
  • Output Voltage: DC 12 15 20 24 27 36 48V
  • Output Frequency: 0Hz
  • Output Current: 0~5A
  • Certification: UL CB EMC CE ENEC
  • Warranty: 2 Years
  • Type: Single Output
  • Protections: Short Circuit/Over TEMP/Over Current/Over Voltage
  • Efficiency: 83~88.5%
  • DIMENSION: 200.5*69.5*35mm (L*W*H)
  • PACKING: 0.52Kg; 25pcs/14Kg/0.65CUFT
  • WORKING TEMP: -30℃~+50℃
  • FREQUENCY RANGE: 47~63HZ
  • Product Name: MEAN WELL LED Driver PLC-100 Dimmable LED Driver Transformer 12V

Packaging & Delivery

Packaging Details Special carton:0.52Kg; 25pcs/14Kg/0.65CUFT
Delivery Time Generally,3-5 days against payment
Power Supply DESC

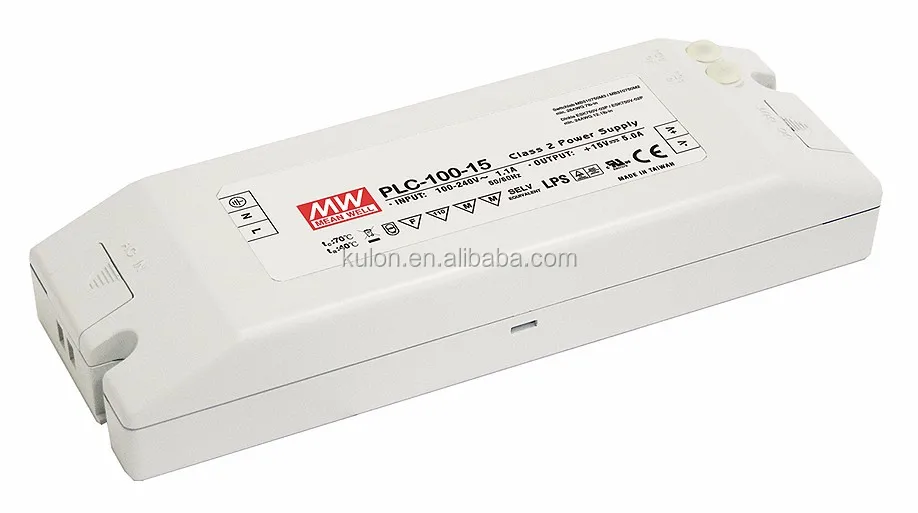

MEAN WELL LED Driver PLC-100 Adjustable Dimmable LED Driver 12V 15V 24V 36V 48V

Features:

♦  Universal AC input / Full range
♦ Adjustable output voltage and current level
♦ Protections: Short circuit / Over current / Over voltage / Over temperature
♦ Built-in constant current limiting circuit
♦ Built-in active PFC function, comply with EN61000-3-2 class C
♦ Class 2 power unit
♦ Suitable for LED lighting and moving sign applications
♦ 2 years warranty

PLC is a single output LED power supply series. Differentiating from general DC output power suppliers, PLC built-in constant current limiting circuit design. Adopting a universal input range between 90VAC and 264VAC and incorporating the built-in PFC function, Class II power unit, no FG. PLC series switching power supply providing a high efficiency and a long using year, PLC suitable for indoor LED lighting and moving sign applications.

Once you’re found an Mean well LED driver, Kulon Electronics will make your Mean well placing order easy. These LED drivers suitable for LED lighting and moving sign applications. We offer a wide arrange of LED power supply to increasing demand of LED lighting applications. “Total quality assurance and customer satisfaction” are the central goals of our company.

Power Supply PARM
MODEL
PLC-100-12
PLC-100-15
PLC-100-24
PLC-100-36
PLC-100-48










OUTPUT
DC VOLTAGE
12V
15V
24V
36V
48V
CONSTANT CURRENT REGION
9 ~ 12V
11.25 ~ 15V
18 ~ 24V
27 ~ 36V
36 ~ 48V
RATED CURRENT
5A
5A
4A
2.65A
2A
CURRENT RANGE
0 ~ 5A
0 ~ 5A
0 ~ 4A
0 ~ 2.65A
0 ~ 2A
RATED POWER
60W
75W
96W
95.4W
96W
RIPPLE & NOISE (max.)
150mVp-p
150mVp-p
150mVp-p
150mVp-p
200mVp-p
VOLTAGEADJ. RANGE(VoADJ)
10.2 ~ 12V
12.8 ~ 15V
20.4 ~ 24V
30.6 ~ 36V
40.8 ~ 48V
CURRENT ADJ. RANGE(IoADJ)
3.75 ~ 5A
3.75 ~ 5A
3 ~ 4A
2 ~ 2.65A
1.5 ~ 2A
VOLTAGE TOLERANCE
±3.0%
±3.0%
±3.0%
±2.0%
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIME
500ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load
HOLD UPTIME (Typ.)
60ms/230VAC 16ms/115VAC at full load





INPUT
VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF>0.95/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
EFFICIENCY (Typ.)
83%
85%
88.5%
88%
88.5%
AC CURRENT (Typ.)
12V:0.8A/115VAC 0.4A/230VAC  15V:0.9A/115VAC 0.45A/230VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A(twidth=950^s measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION
SHORT CIRCUIT

OVER TEMPERATURE
Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover



 ENVIRONMENT
WORKING TEMP.

-30 ~ +50°C (Refer to Derating Curve)
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80C, 10 ~  95%RH
TEMP. COEFFICIENT
±0.03%/C (0 ~ 50C)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes





SAFETY & EMC
SAFETY STANDARDS
UL1310, TUV EN60950-1, EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, CAN/CSAC22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH
EMC EMISSION
Compliance to EN55015, GB17743, GB17625.1, EN55022 (CISPR22) Class B, EN61000-3-2,-3, Class C (270% load) ; EN61000-3-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level, (surge 4KV), criteriaA

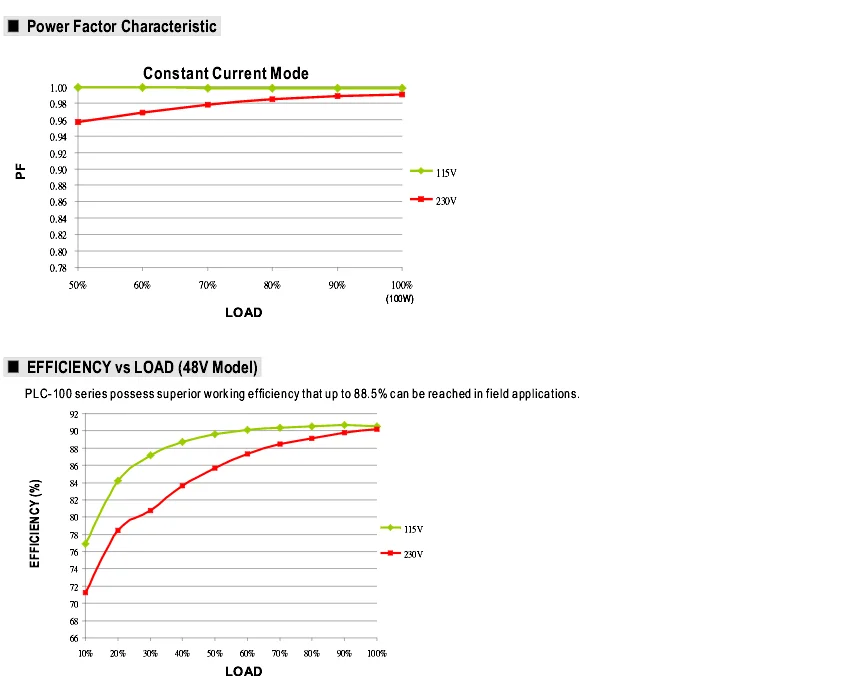

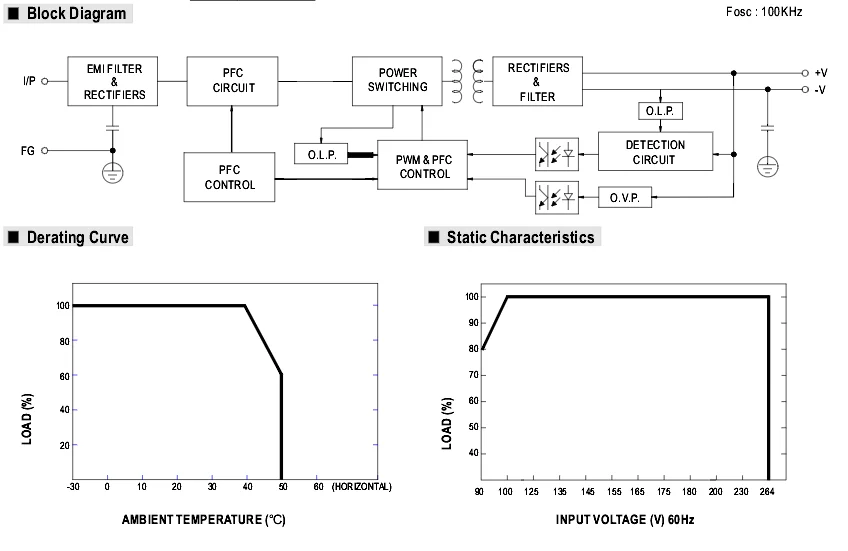

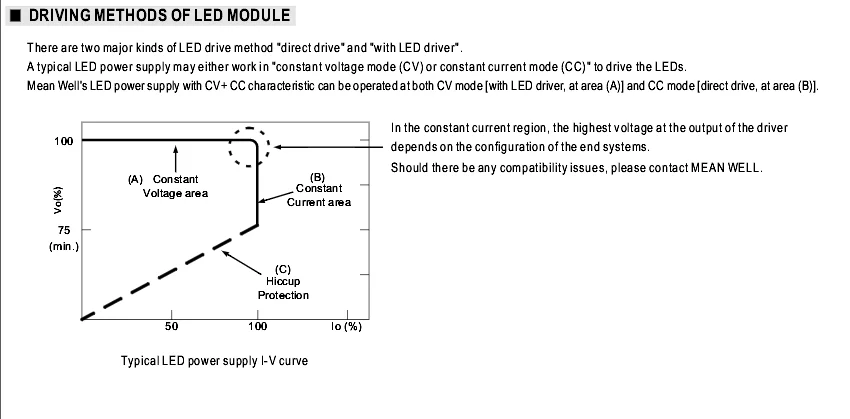

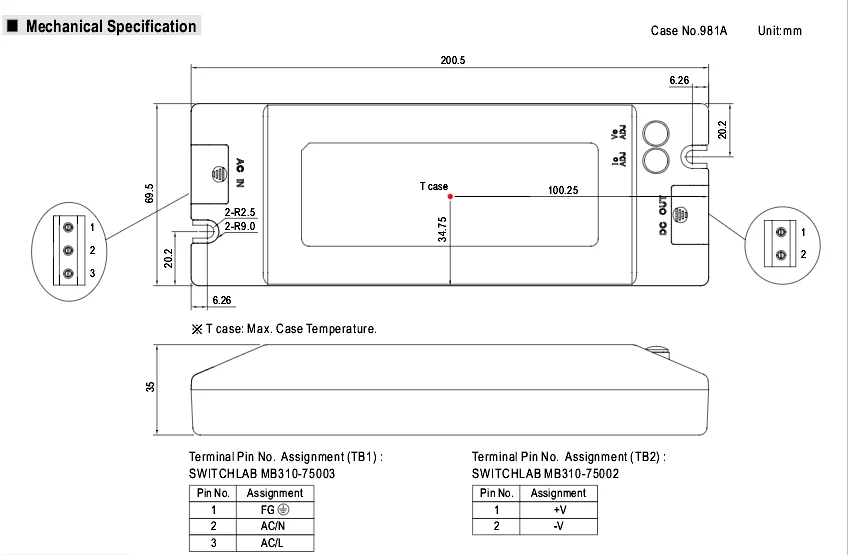

Power Supply APPL
Packing & Delivery
Related Power Supply

PLC-30 Seies Led Driver
Output Power:30w
Dimension:181.5*62*35mm(L*W*H)

Output Power:45w
Dimension:181.5*62*35mm(L*W*H)

Output Power:60w
Dimension:200.5*69.5*35mm(L*W*H)

Output Power:40W-120W
Features:2 IN 1 DIMMING
Warranty: 5 Years

Output Power:65-150W
Features:DIMMABLE DRIVER,IP67
Warranty:5 Years

Output Power:40-320W
Features:3 IN 1 DIMMING PFC function
Warranty:7 Years
Our Company
FAQ of Power Supply

How to choose a right Mean well Switching Power Supply?

A.To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need.
For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system

B. Choosing functions based on your application:
1. Protection function: Over Voltage Protection (OVP), Over Temperature Protection (OVP), Over Load Protection (OLP), and etc.
2. Application function: Signaling Function (Power Good, Power Fail), Remote Control, Remote Sensing, and etc.
3. Special function: Power Factor Correction (PFC), Uninterruptible Power Supply (UPS) function.

C. Make sure that the model qualifies for the safety standards and EMC regulations you need.
1.Apparent Power=Input Voltage x Input Current (VA)
2.Real Power= Input Voltage x Input Current x Power Factor (W)


From the environment friendly point, the electric power plant needs to generate a power which is higher than apparent power in order to steadily provide electricity to the market. The real usage of electricity should be defined by real power. Assuming the power factor is 0.5, the power plant needs to produce more than 2VA to satisfy 1W real power. On the contrary, if the power factor is 0.95, the power plant only needs to generate more than 1.06VA to provide 1W real power need.
