Meanwell LED Driver PLM-25 Constant Current PFC Waterproof LED Driver

FOB Reference Price:Get Latest Price
  • 1 - 49
    US $11.60
  • 50 - 199
    US $10.90
  • 200 - 999
    US $9.50
  • >=1000
    US $8.30
Supply Ability:
100000 Piece/Pieces per Month enough stock on hand for led driver
Port:
shenzhen, shanghai or ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
MEANWELL
Model Number:
PLM-25
Output Power:
MAX 25W
Output Type:
Single
Input Voltage:
90-305VAC 127-431VDC
Output Voltage:
14-72V
Output Frequency:
0HZ
Output Current:
350ma 500ma 700ma 1050ma
Certification:
CB CE
Warranty:
3 Years
Type:
Single Output
Protection:
Short Circuit/overload/over voltage
Efficiency:
max 87%
Product Name:
PFC Waterproof LED Driver
Packing:
0.126Kg;60pcs/8.6 Kg/0.48CUFT
Dimension:
145*38*22mm
Application:
LED Lighting
Working temperature:
40~+80°C
Packaging & Delivery
Packaging Details
special protective exporting led driver carton
packing; 0.126Kg;60pcs/8.6 Kg/0.48CUFT
Delivery Time
3-5 days after receiving deposit
LED Driver Desc

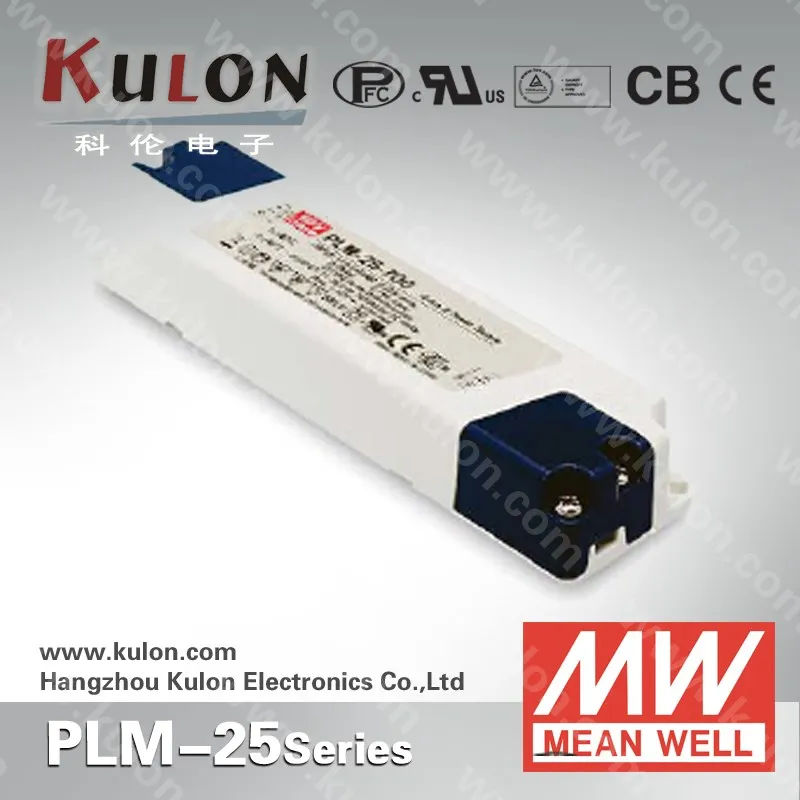

                         Meanwell LED Driver PLM-25 Constant Current PFC Waterproof LED Driver

Feature

Universal AC input / Full range (up to 295 VAC)
Fully isolated plastic case
Built-in active PFC function
Small and compact size

Class 2 power unit, no FG
100% full load burn-in test
No load power consumption less than 0.5W
Low cost and high reliability
2 years warranty


PLM series is economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM led driver series provides a high power factor value greater than 0.9. In addition, with the low no load power consumption below 0.5w, and the setup time less than 500ms, PLM series switching power supply is complied with the Erp regulation required by European union for lighting fixtures. PLM series LED driver is a class II(without FG pin) power unit housed with UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Mean well PLM series power supply range from 12 to40 watts has been earning supreme customer’s rating for a long time.

Meanwell is a leading standard switching power supply manufactures in the world, Kulon Electronics is the biggest agent in China. Once you’re found an Mean well LED driver, Kulon Electronics will make your Mean well placing order easy. These LED drivers suitable for all kind of indoor or outdoor installation of LED-related applications

1.110-295VAC input active PFC,PLM-series, plastic case  constant current led driver,led indicator,waterproof IP30 ,UL/CE/CB/EMC/TUV/PSE certifications with 7 years warranty.

2.Wattages from 12-40 wide operation range suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement,no load power consumption<0.5 with short circuit/over voltage/over current/over temp protections.

3.Hot sale AC/DC highest power/efficiency led driver ,Good heat dissipation, most popular models,enough stocks ,short delivery time: 1~3 woking days.

MODEL
PLM-25-350
PLM-25-500
PLM-25-700
PLM-25-1050





OUTPUT

DC VOLTAGE
42-72v
30-50V
21-36V
14-24V
RATED CURRENT
0.35A
0.5A
0.7A
1.05A
NO LOAD OUTPUT VOLTAGE
80V
56V
42V
28V
RATED POWER
25.2W
25W
25.2W
25.2W
RIPPLE & NOISE (max.)
7.2VP
5.0VP-P
3.6VP-P
2.4VP-P
VOLTAGE ADJ. RANGE
9VP-P
7.5VP-P
5.4VP-P
3.6VP-P
CURRENT ACCURACY
±5.0%
SETUP TIME
500ms / 115VAC, 230VAC at full load
MODEL
PLM-25-350
PLM-25-500
PLM-25-700
PLM-25-1050




INPUT

VOLTAGE RANGE
110 ~ 295VAC 156 ~ 417VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
F≥0.97/115VAC,PF≥0.95/230VAC,PF>0.9/277VAC
EFFICIENCY (Typ.)
87%
86%
86%
85%
AC CURRENT
0.3A/115VAC 0.15A/230VAC 0.12A/277VAC
INRUSH CURRENT
COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC
MODEL
PLM-25-350
PLM-25-500
PLM-25-700
PLM-25-1050
PROTECTION
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed


EMC

SAFETY &
SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384,
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH
EMC EMISSION
Compliance to EN55015, GB17743, GB17625.1(for E type only),EN61000-3-2 Class C(≥60% load);EN61000-3-3
EMS IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547, light industry level, criteria B(surge 2KV)
NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.3. Tolerance : includes set up tolerance, line regulation and load regulation.  4. Constant current operation region is within 60%~100% rated output voltage. This is suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.5. Derating may be needed under low input voltages. Please check the static characteristics for more details. 6. A type only.7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.







LED Driver Cert
LED Driver P&D
Related LED Driver

                                   PLM series from 12-40W are constant current PFC  led  driver

             PLM-12

constant current led driver

350-1050ma  led driver

protection: short circuit/overload

                  PLM-25

enclosed active PFC function

dimension: 145*38*22mm

2 years warranty

                 PLM-40

no load sumption<0.5w

low cost and high reliability

dimension:175*42*24mm


                                                                                                                                             More led driver about PL M series

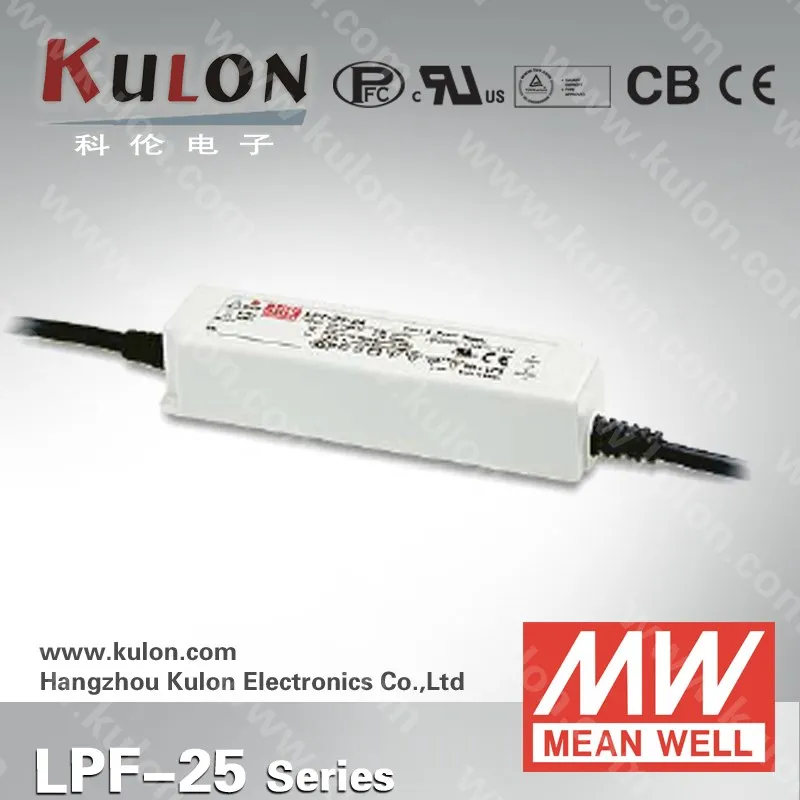

             LPF series

12-90w IP 67 design

3 in 1 dimming led driver

constant current led driver



              PLD  series

16-60w PFC led driver

Fully isolated plastic case

3 years warranty

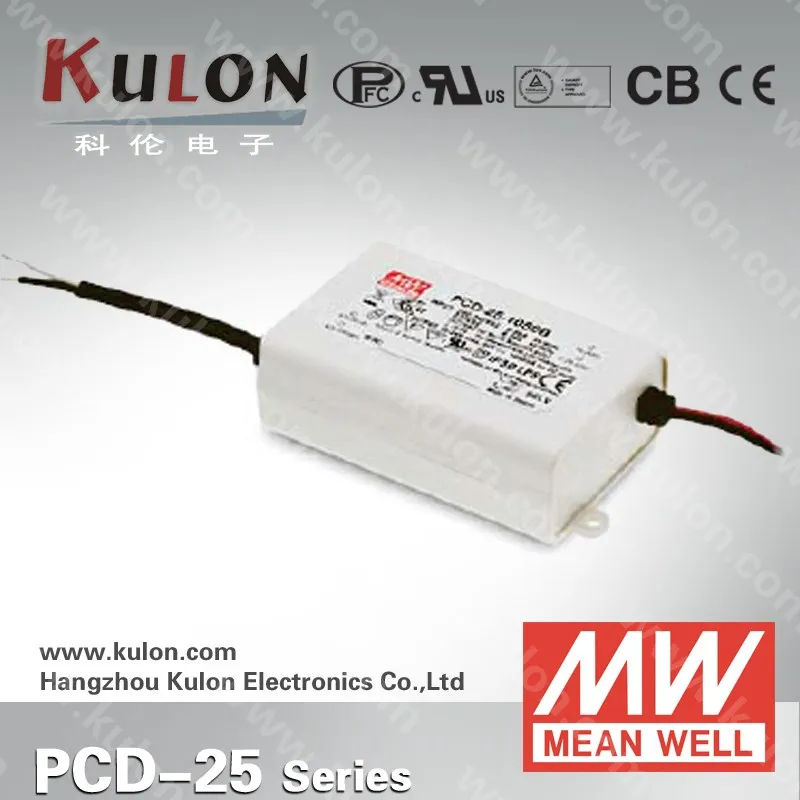

            PCD series

constant current led driver

high reliability and low cost

AC phase-cut dimming

Our Company
FAQ

How to choose a suitable led driver ?


A.To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need.
For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system


B. Choosing functions based on your application:
1. Protection function: Over Voltage Protection (OVP), Over Temperature Protection (OVP), Over Load Protection (OLP), and etc.
2. Application function: Signaling Function (Power Good, Power Fail), Remote Control, Remote Sensing, and etc.
3. Special function: Power Factor Correction (PFC), Uninterruptible Power Supply (UPS) function.

C. Make sure that the model qualifies for the safety standards and EMC regulations you need.
1.Apparent Power=Input Voltage x Input Current (VA)
2.Real Power= Input Voltage x Input Current x Power Factor (W)

From the environment friendly point, the electric power plant needs to generate a power which is higher than apparent power in order to steadily provide electricity to the market. The real usage of electricity should be defined by real power. Assuming the power factor is 0.5, the power plant needs to produce more than 2VA to satisfy 1W real power. On the contrary, if the power factor is 0.95, the power plant only needs to generate more than 1.06VA to provide 1W real power need. It will be more effective.
