Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: MEAN WELL
  • Model Number: PCD-40
  • Output Power: 37.8~40.6W
  • Output Type: Single
  • Input Voltage: 0.35A/230VAC 0.3A/277VAC
  • Output Voltage: 13~108VDC
  • Output Frequency: 0Hz
  • Output Current: 350mA, 700mA, 1050mA, 1400mA, 1750mA
  • Product Name: Meanwell PCD-40 single output 40w switching power supply
  • Certification: CE CB EMC ENEC
  • Packing Size: 128*60*31.5mm (L*W*H)
  • Weight: 0.23Kg;30pcs/7.9Kg/0.58CUFT
  • Efficiency: up to 87%
  • Warranty: 3 Years
  • Working temperature: -30~50℃
  • Protections: Shortcuit/ Over temperature
  • Short circuit protection: Hiccup mode, recovers automatically after fault conditions is removed
  • Over temperature protection: Shut down o/p voltage, re-power on to recover

Packaging & Delivery

Packaging Details Special protective exporting power supply carton,Packing: 0.23Kg;30pcs/7.9Kg/0.58CUFT, 128*60*31.5mm (L*W*H)
Delivery Time 2~5 days after against payment!
Product Description

                 MEAN WELL PCD-40(single output 350mA, 700mA, 1050mA, 1400mA, 1750mA) low cost constant current switching power supply

Features:

1. AC Phase-cut dimming
2. Work with leading edge and trailing edge TRIAC dimmers.
3. Constant current design
4. Built-in active PFC function
5. Fully isolated plastic case
6. Protections: short circuit/ Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test
9. Suitable for indoor LED lighting applicatios

PCD series is economical AC/DC converter constant current design dimmable LED power supply series. Incorporating a built-in active PFC design, PCD led driver series built-in AC phase-cut dimming, work with leading and trailing edge triac dimmers. Fully isolated plastic case with IP42 level, suitable for built in LED lighting. PCD series switching power supply cooling by free air convection and with 115VAC or 230VAC models. This power supply combined with connectors provide a pleasing and imposing aesthetic with a unique and function design that combines modern aesthetics with the power of a high- grade product. Mean well PLM series power supply range from 16 to 60 watts has been earning supreme customer’s rating for a long time.

Meanwell is a leading standard switching power supply manufacturers in the world. Kuon electronics is the biggest agent of “meanwell” brand in the china. We do not only provide you products, we also offer you solutions. “To be your green and energy saving power solution expert” is our goal.

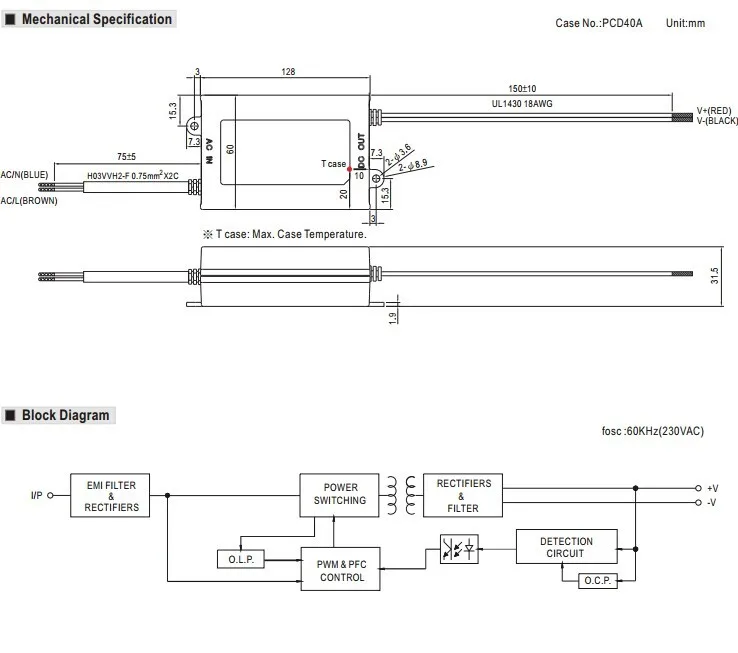

Detailed Images
Model
PCD-40-350
PCD-40-500
PCD-40-700
PCD-40-1050
PCD-40-1400
PCD-40-1750







Output
Rated current
350mA
500mA
700mA
1050mA
1400mA
1750mA
Operating voltage range
70~108V
45~80V
34`57V
22~38V
17~29V
13~23V
current accuracy
±5.0%
Rated power
37.8W
40W
39.9W
39.9W
40.6W
40.25W
RIPPLE&NOISE (max) NOTE.1
9.5Vp-p
5.0Vp-p
3.1VP-P
2.6VP-P
2.5Vp-p
2.4Vp-p
No load output voltage (max.)
118V
100V
63V
50V
35V
35V
Setup time
500ms/230VAC  2000ms/115VAC at full load
Model
PCD-40-350
PCD-40-500
PCD-40-700
PCD-40-1050
PCD-40-1400
PCD-40-1750










Input
VOLTAGE RANGE
185~295VAC
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
Totalharmonic,  distortion
THD< 20% when output loading≥70% at 115VAC                         THD< 20% when output loading^70% at 230VAC input and output loading^80% at 277VAC input
EFFICIENCY (Typ.)
87%
87%
86%
86%
85%
85%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(max.)
COLD START 11A at 230VAC
MAX. No. of PSUs on 16ACIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA/ 120VAC / 240VAC
Model
PCD-40-350
PCD-40-500
PCD-40-700
PCD-40-1050
PCD-40-1400
PCD-40-1700


PROTECTION

Short circuit
Hiccup mode, recovers automatically after fault condition is removed.

Over temperature
Shut down o/p voltage, re-power on to recover
Model
PCD-25-350
PCD-40-500
PCD-25-700
PCD-25-1050
PCD-25-1400
PCD-40-1700





ENVIRONMENT
Working temp
-30 ~ +60°C (Refer to "Derating Curve")
Working humidity
20 ~ 95% RH non-condensing
Storage temp, humidity
-40 ~ +80C, 10 ~ 95% RH
Temp. coefficient
±0.03%/QC (0 ~ 50C)
Vibration
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Model
PCD-40-350
PCD-40-500
PCD-40-700
PCD-40-1050
PCD-400-1400
PCD-40-1700






SAFETY EMC
SAFETYSTANDARDS
UL8750, CSAC22.2 No. 250.0-08(except for PCD-16-350), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42 approved ; design refer to UL60950-1,TUV EN60950-1, EN61347-1, EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-0/P:100M Ohms / 500VDC / 25C/ 70% RH
EMC EMISSION
Compliance to EN55015 (B type only), EN61000-3-2 Class C ; EN61000-3-3, FCC part 18 non-consumer equipment (A type only)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61547, light industry level, criteriaA
Packing & Delivery

NES series are suitable for led strip /indoor lighting/industries/mechanica automation etc.

Related Products

1. 16W single output power supply

2. 350mA, 500mA, 700mA, 1050mA, 1400mA

3. Rated power: 16.8W

4. High efficiency up to 82%

5. 3 years warranty

1. 25W single output power supply

2. 350mA, 500mA, 700mA, 1050mA, 1400mA, 1750mA
3. Rated power: 20.3~25.2W
4. High efficiency up to 82%
5. 3 years warranty

PCD-60

1. 60W single output power supply
2. 500mA, 700mA, 1050mA, 1400mA, 1750mA, 2000mA, 2400mA
3. Rated power: 59.85~60.2W
4. High efficiency up to 87%
5. 3 years warranty

More Power supply about PCD series

1. Power range from 8w to 35w

2. Low cost, high reliability

3. 2 years warranty

4. 100% full load burn-in test


1. Power range from 16w to 60w
2. Low cost, high reliability
3. 3 years warranty
4. Suitable for dry/ damp locations

1. Power range from 25w to 60w
2. Built-in 3 in 1 dimming function
3. 3 years warranty
4. CCC, UL, CB, CE, EMC, ENEC, ErP certificate

More power supply about PCD series

Our company
FAQ

How to choose a right Mean well Switching Power Supply?

A.To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need.
For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system

B. Choosing functions based on your application:
1. Protection function: Over Voltage Protection (OVP), Over Temperature Protection (OVP), Over Load Protection (OLP), and etc.
2. Application function: Signaling Function (Power Good, Power Fail), Remote Control, Remote Sensing, and etc.
3. Special function: Power Factor Correction (PFC), Uninterruptible Power Supply (UPS) function.

C. Make sure that the model qualifies for the safety standards and EMC regulations you need.
1.Apparent Power=Input Voltage x Input Current (VA)
2.Real Power= Input Voltage x Input Current x Power Factor (W)
