Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: MEAN WELL
  • Model Number: PCD-16-350
  • Output Power: 16.8W
  • Output Type: Single
  • Input Voltage: 0.4A/115VAC, 0.2A/230VAC, 0.15A/277VAC
  • Output Voltage: 8~48VDC
  • Output Frequency: 0Hz
  • Output Current: 350mA
  • Product Name: MEAN WELL PCD-16-350 16w 350mA led switching power supply
  • Certification: UL CE TUV CB EMC FCC ENEC
  • Packing Size: 84*57*29.5mm (L*W*H)
  • Weight: 0.19kgs; 72pcs/14.7kg; 0.92CUFT
  • Efficiency: up to 82%
  • Warranty: 3 Years
  • Working temperature: -30~60℃
  • Protections: Shortcuit/ Over temperature
  • Short circuit protection: Hiccup mode, recovers automatically after fault conditions is removed
  • Over temperature protection: Shut down o/p voltage, re-power on to recover

Packaging & Delivery

Packaging Details Special protective exporting power supply carton,Packing: 84*57*29.5mm (L*W*H), 0.19kgs; 72pcs/14.7kg; 0.92CUFT
Delivery Time 2~5 days after against payment!
Product Description

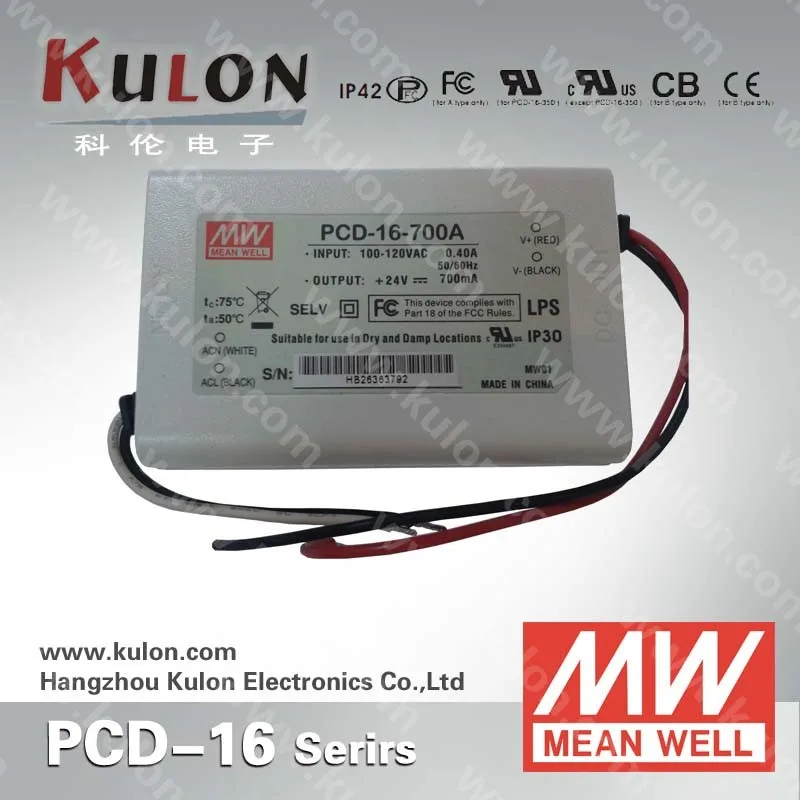

                 MEAN WELL PCD-16-350 16w 350ma led switching power supply

Features:

1. AC Phase-cut dimming
2. Work with leading edge and trailing edge TRIAC dimmers.
3. 115VAC or 230VAC models available
4. Built-in active PFC function
5. Constant current design
6. Protections: short circuit/ Over temperature
7. Cooling by free air convection
8. Fully isolated plastic case
9. IP42 design

PCD series is economical AC/DC converter constant current design dimmable LED power supply series. Incorporating a built-in active PFC design, PCD led driver series built-in AC phase-cut dimming, work with leading and trailing edge triac dimmers. Fully isolated plastic case with IP42 level, suitable for built in LED lighting. PCD series switching power supply cooling by free air convection and with 115VAC or 230VAC models. This power supply combined with connectors provide a pleasing and imposing aesthetic with a unique and function design that combines modern aesthetics with the power of a high- grade product. Mean well PLM series power supply range from 16 to 60 watts has been earning supreme customer’s rating for a long time.

Meanwell is a leading standard switching power supply manufacturers in the world. Kuon electronics is the biggest agent of “meanwell” brand in the china. We do not only provide you products, we also offer you solutions. “To be your green and energy saving power solution expert” is our goal.

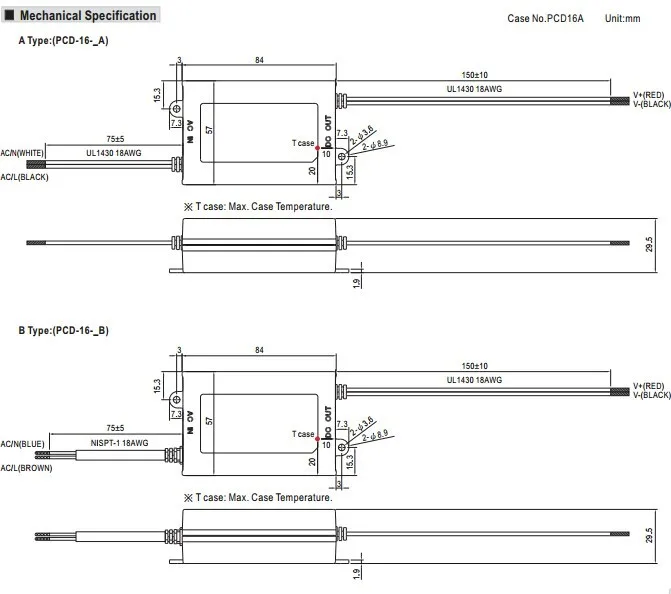

Detailed Images
Model
PCD-16-350
PCD-16-700
PCD-16-1050
PCD-16-1400







Output
Rated current
350mA
700mA
1050mA
1400mA
Operating voltage range
24~48V
16~24V
12~16V
8~12V
current accuracy
±5.0%
Rated power
16.8W
16.8W
16.8W
16.8W
RIPPLE&NOISE (max) NOTE.1
4.6Vp-p
2.7VP-P
2.2VP-P
2VP-P
No load output voltage (max.)
60V
35V
25V
16V
Setup time
500ms/230VAC  2000ms/115VAC at full load
Model
PCD-16-350
PCD-16-700
PCD-16-1050
PCD-16-1400










Input
FREQUENCY RANGE
47 ~63Hz
POWER FACTOR (Typ.)
PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
Totalharmonic,  distortion
A series
B series
THD< 20% when output loading≥70% at 115VAC                         THD< 20% when output loading^70% at 230VAC input and output loading^80% at 277VAC input
EFFICIENCY (Typ.)
82%
81%
80.5%
80%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(max.)
COLD START 10A(twidth=90^s measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16ACIRCUIT BREAKER
A series

B series
58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC                                                                                     58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
LEAKAGE CURRENT
<0.5mA/ 120VAC / 240VAC
Model
PCD-16-350
PCD-16-700
PCD-16-1050
PCD-16-1400


PROTECTION

Short circuit
Hiccup mode, recovers automatically after fault condition is removed.

Over temperature
Shut down o/p voltage, re-power on to recover
Model
PCD-16-350
PCD-16-700
PCD-16-1050
PCD-16-1400





ENVIRONMENT
Working temp
-30 ~ +60°C (Refer to "Derating Curve")
Working humidity
20 ~ 95% RH non-condensing
Storage temp, humidity
-40 ~ +80C, 10 ~ 95% RH
Temp. coefficient
±0.03%/QC (0 ~ 50C)
Vibration
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Model
PCD-16-350
PCD-16-700
PCD-16-1050
PCD-16-1400






SAFETY EMC
SAFETYSTANDARDS
UL8750, CSAC22.2 No. 250.0-08(except for PCD-16-350), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42 approved ; design refer to UL60950-1,TUV EN60950-1, EN61347-1, EN61347-2-13
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-0/P:100M Ohms / 500VDC / 25C/ 70% RH
EMC EMISSION
Compliance to EN55015 (B type only), EN61000-3-2 Class C ; EN61000-3-3, FCC part 18 non-consumer equipment (A type only)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61547, light industry level, criteriaA
Packing & Delivery
Related Products

PCD-25

1. 25W single output power supply

2. 350mA, 500mA, 700mA, 1050mA, 1400mA

3. Rated power: 20.3~25.2W

4. High efficiency up to 82%

5. 3 years warranty

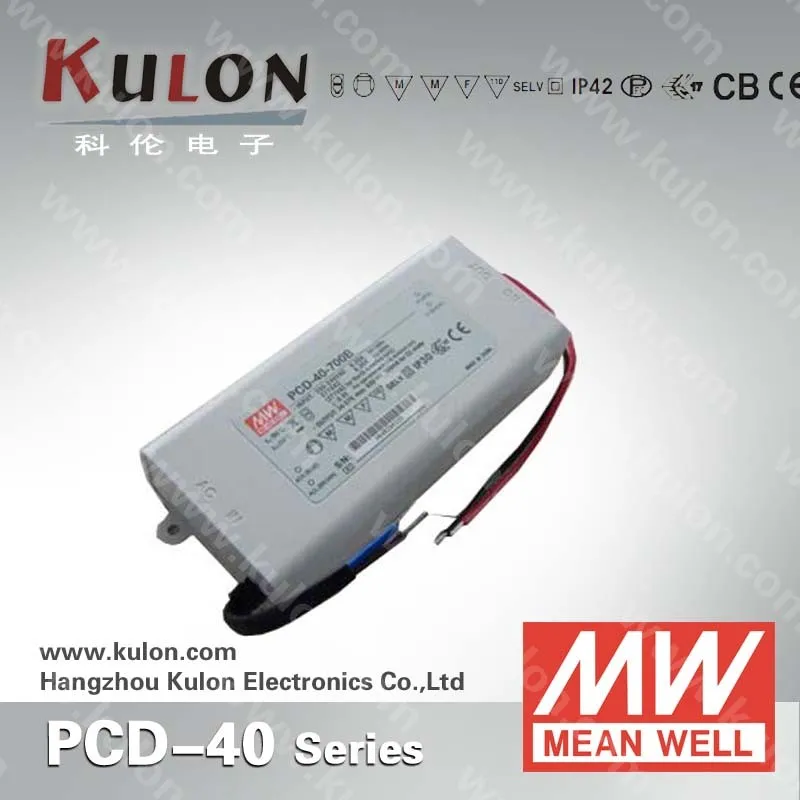

PCD-40

1. 40W single output power supply

2. 350mA, 500mA, 700mA, 1050mA, 1400mA, 1750mA
3. Rated power: 37.8~40.6W
4. High efficiency up to 87%
5. 3 years warranty

PCD-60

1. 60W single output power supply
2. 500mA, 700mA, 1050mA, 1400mA, 1750mA, 2000mA, 2400mA
3. Rated power: 59.85~60.2W
4. High efficiency up to 87%
5. 3 years warranty

More Power supply about NES series

AP-C-25

1. Power range from 8w to 35w

2. Low cost, high reliability

3. 2 years warranty

4. 100% full load burn-in test


PLD-25

1. Power range from 16w to 60w
2. Low cost, high reliability
3. 3 years warranty
4. Suitable for dry/ damp locations

LCM-25

1. Power range from 25w to 60w
2. Built-in 3 in 1 dimming function
3. 3 years warranty
4. CCC, UL, CB, CE, EMC, ENEC, ErP certificate

Our company
FAQ

How to choose a right Mean well Switching Power Supply?

A.To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need.
For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system

B. Choosing functions based on your application:
1. Protection function: Over Voltage Protection (OVP), Over Temperature Protection (OVP), Over Load Protection (OLP), and etc.
2. Application function: Signaling Function (Power Good, Power Fail), Remote Control, Remote Sensing, and etc.
3. Special function: Power Factor Correction (PFC), Uninterruptible Power Supply (UPS) function.

C. Make sure that the model qualifies for the safety standards and EMC regulations you need.
1.Apparent Power=Input Voltage x Input Current (VA)
2.Real Power= Input Voltage x Input Current x Power Factor (W)

From the environment friendly point, the electric power plant needs to generate a power which is higher than apparent power in order to steadily provide electricity to the market. The real usage of electricity should be defined by real power. Assuming the power factor is 0.5, the power plant needs to produce more than 2VA to satisfy 1W real power. On the contrary, if the power factor is 0.95, the power plant only needs to generate more than 1.06VA to provide 1W real power need. It will be more effective.
