MEANWELL HLG-240H Waterproof Electronic 240W 12V15V20V24V LED Driver

FOB Reference Price:Get Latest Price
  • 1 - 49
    US $52.24
  • 50 - 199
    US $48.75
  • 200 - 999
    US $45.71
  • >=1000
    US $43.53
Supply Ability:
100000 Piece/Pieces per Month enough stock on hand for led driver
Port:
Shanghai, Ningbo or Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
Meanwell
Model Number:
HLG-240H
Output Power:
196W
Output Type:
Single
Input Voltage:
90-305VAC 127-431VDC
Output Voltage:
12V15V20V24V
Output Frequency:
0Hz
Output Current:
16A

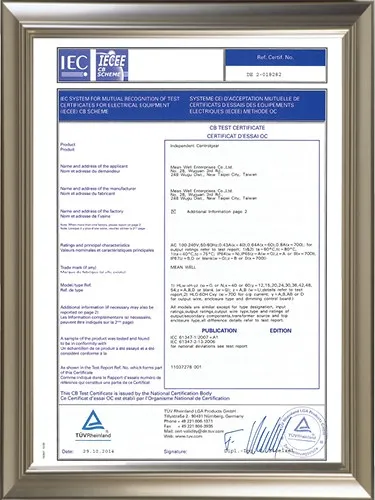

Certification of led driver:
CB CE
Application of led driver:
LED Lighting
Warrantyp of led driver:
5 Years
Type of led driver:
Single Output
Protection of led driver:
Short Circuit/overload/over voltage
Efficiency of led driver:
90%
Product Name:
PFC Waterproof LED Driver
Packing of led driver:
1.3Kg; 12pcs/16.6Kg/0.74CUFT
dimension of led driver:
244.2*68*38.8mm (L*W*H)
Working temperature:
-20+60c
Packaging & Delivery
Packaging Details
special protective exporting carton for led driver,
packing :0.73Kg; 20pcs/15.6Kg/0.9CUFT
Delivery Time
3-5 days after receiving deposit
LED Driver DESC

                  MEANWELL LED Driver HLG-240H Waterproof Electronic 240W 12V 15V 20V 24V LED Driver



Fearures:

• Bulit-in active PFC function
• No load power consumption<0.5w at remote OFF
• Protections: short circuit / over current / over voltage / over temperature
• Fanless design, cooling by free air convection
• IP67 / IP65 design for indoor or outdoor installations
• Three in one dimming function ( 0-10VDC signal or resistance )
• Suitable for dry /  damp /  wet location
• 7 years warranty

HLG series is the most outstanding model in the led driver. One of the most outstanding features is HLG series have 7 years warranty, it’s with high- competitive in the similar brands. Firstly, HLG series led driver with 90~305VAC input and built-in active PFC function. Secondly, HLG series led driver with high efficiency up to 96%. Third, HLG with metal case, IP67/IP65 design for indoor and outdoor installations. Forth, HLG series led driver built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for B type. Type “HL” LED driver for use in Class I, Division 2 hazardous (Classified) location luminaries. Meanwell HLG series high power AC/DC led driver range from 40 to 600 watts has been earning supreme customer’s rating for a long time. HLG series led driver suitable for LED street lighting, outdoor LED lighting and general outdoor application with high IP requirement.


Meanwell is a leading standard switching power supply manufacturers in the world. Kuon electronics is the biggest agent of “meanwell” brand in the china. We do not only provide you products, we also offer you solutions. “To be your green and energy saving power solution expert” is our goal.

HLG series

1.90-305VAC input active PFC HLG -series,metal case 3 in 1 dimming led driver,led indicator,waterproof IP67/IP65,UL/CE/CB/EMC/TUV/PSE certifications with 7 years warranty.


2.Wattages from 120~600w wide operation range suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement,no load power consumption<0.5,OCP point adjustable with short circuit/over voltage/over current/over temp protections.

3.Hot sale AC/DC highest power/efficiency led driver ,Good heat dissipation, most popular models,enough stocks ,short delivery time: 1~3 woking days.

LED Driver PARM
MODEL
HLG-240H-12
HLG-240H-15
HLG-240H-20
HLG-240H-24





OUTPUT


DC VOLTAGE
12V
15V
20V
24V
RATED CURRENT
16A
15A
12A
10A
CURRENT REGION
0-16A
0-15A
0-12A
0-10A
RATED POWER
192W
225W
240W
240W
RIPPLE & NOISE
150mVp-p
150mVp-p
150mVp-p
150mVp-p
VOLTAGE ADJ. RANGE
11.2 ~ 12.8V
14 ~ 16V
18.6 ~ 21.4V
22.4 ~ 25.6V
VOLTAGE TOLERANCE
±2.5%
±2.0%
±1.0%
±1.0%
LINEREGULATION
±0.5%
±0.5%
±0.5%
±0.5%
LOADREGULATION
±2.0%
±1.5%
±1.0%
±0.5%
SETUPRISEHOLDTIME
2500ms, 80ms at full load 230VAC /115VAC
MODEL
HLG-240H-12
HLG-240H-15
HLG-240H-20
HLG-240H-24



INPUT

VOLTAGE RANGE
90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
90%
90%
92%
93%
AC CURRENT
4A / 115VAC 2A / 230VAC
INRUSH CURRENT
COLD START 75A/230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC



PROTECTION

MODEL
HLG-240H-12
HLG-240H-15
HLG-240H-20
HLG-240H-24


OVERLOAD

95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVERVOLTAGE
13.5 ~ 16V
16.5 ~ 19.5V
22 ~ 26V
26 ~ 33V
Protection type : Shut down o/p voltage, re-power on to recover

        OVER

TEMPERATURE

85 ℃ ± 1 ℃ (RTH2)
Protection type : Shut down o/p voltage, re-power on to recover
MODEL
HLG-240H-12
HLG-240H-15
HLG-240H-20
HLG-240H-24


ENVIRONMENT
WORKING TEMP.
-30 ~ +60℃ @ full load ; +70℃ @ 60% load
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY

-40 ~ +80℃ , 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/ ℃(0 ~ 50℃ )

VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes


SAFETY &
EMC

SAFETY STANDARDS
UL1012, TUV EN61347-1, EN61347-2-13 independent (except for HLG-240H C type), UL60950-1, UL8750, TUV EN60950-1, IP65 or IP67 approve
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMI CONDUCTION & RADIATION
Compliance to EN55015, EN55022 (CISPR22) Class B
HARMONIC CURRENT
Compliance to EN61000-3-2 Class C ( 50% load) ; EN61000-3-3
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please
reconfirm special electrical requirements for some specific system design.
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Type A and type C only.
7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.

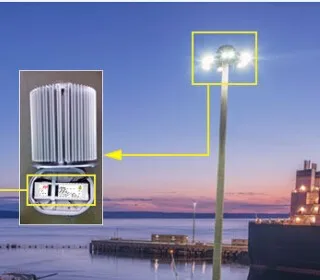

LED Driver App

                       HLG series are suitable for led strip /indoor lighting/industries/mechanica automation etc.

Packing & Delivery
Related LED Driver

            HLG series waterproof led driver varied from 40-600W are high efficiency models with PFC function.

HLG-100H LED Driver


1. single output range 60w
2. 5 years warranty
3. IP67 /IP65


1.240w waterproof led driver

2.high efficiency up to 93.5%

3. current can be adjust

1.600W dimmable led driver

2.built-in 3 in 1 dimming led driver

3. Switching power led driver

1. Power range from 65w to 150w
2. 5 years warranty
3. IP67/IP65

1.Output Power: 75~240W
2.3 in 1 dimming function
3.cUL CB CE approved
4.5 years warranty

1. Power range from 60w to 150w
2. AC phase-cut dimming
3. 3 years warranty

Our Company
LED Driver FAQ

How do you select a suitable MeanWell LED power supply?

A. Select suitable wattage based on the customer’s system requirements and application methods. Be sure to take excess power and driving method into consideration.
• For selection key points when using a Mean Well power supply to “directly” drive an LED lamp, refer to questions 2 and 3.
• For selection key points when using a Mean Well power supply in combination with an LED driver IC to achieve high precision current control, refer to questions 2 and 3.
B. Based on the LED power supply’s operating environment, select the suitable IP level and mechanical type (metal enclosure, plastic enclosure, or open frame) for that environment.
C. Determine whether PFC function is required or not. Single stage PFC is only suitable for LED load. Dual stage PFC is suitable for general applications.
D. If the LED system is based on direct drive, unit s with adjustable voltage and current should be considered for flexibility in changing voltage/current levels. Dimming function may also com in handy when LED brightness control is preferred.
